CLIMATE
3-IN-1 | Ventilation | Purification | Comfort

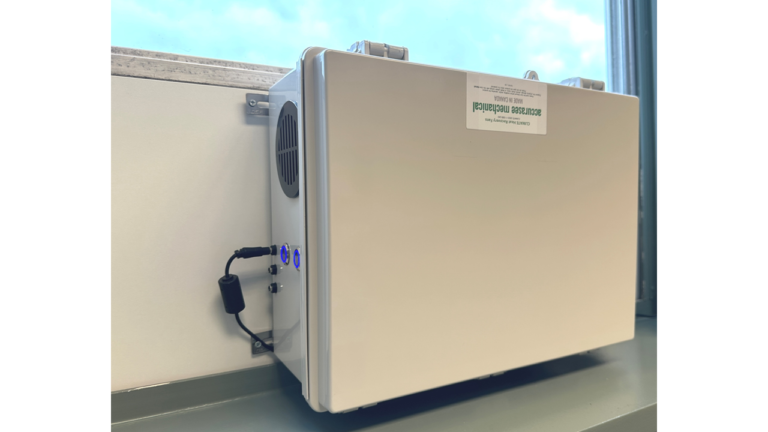

CLIMATE, which uses the same “plug and play” form factor as MINI, is an exhaust and supply fan system for thermal energy (heat) recovery, and can ventilate rooms, apartments, and houses.
Now in its seventh generation, CLIMATE is rated to Standard Test Codes, and has been meticulously optimized for thermal, flow, and acoustic performance since its commissioning.
Efficient
The unit uses dual axial-flow brushless direct current fans that feature relatively low specific power consumption for reliable continuous ventilation.
Self Installed
Unlike conventional ventilation products which can be difficult to install and limited in options, our products can easily be installed by anyone without technical background!
Affordable
Our products are built by hand in our factory. While this represents significant manufacturing costs, our products are relatively affordable with respect to the value that they offer.
Handcrafted.
MADE IN CANADA.
…SINCE 2018…
Excessive moisture damages buildings
Likewise, high CO2 & VOC levels negatively affect our productivity and well being *
Our product easily solves the problem. Period.
SUPERIOR DECENTRALIZED VENTILATION
Your purchase is secured for its lifetime.
***
Applies to orders that are placed on or after April 1, 2024
Rated in accordance with the Standard Test Code by the Energy Systems Laboratory of the Texas A&M Engineering Experiment Station.
10
CAPACITY m3/h
0
kg
WEIGHT
≤
10
sq ft
RECOMMENDED FLOOR AREA
10
%
EFFECTIVENESS
1
V & 120V
VOLTAGE
1
kg
WEIGHT
1
W
POWER
1
PORTS
1
/ 120 V
VOLTAGE
- SEE THE DATA SHEET FOR FULL SPECIFICATIONS
EASY INSTALLATION
1
Mount the product on the wall or ceiling. You may also place it on a table or floor.
2
Drill 2x 3” holes or use a fabric casement seal that has 2 zipper orifices to avoid drilling.
3
Insert the 2x pre-assembled ducts into the holes and supply power to the product.
...
Please read the User Manual and Installation Guide for comprehensive information on how to install and control the product.
Values
Minimalist
Modular
Reusable / Recyclable
PRINCIPLE
CLIMATE utilizes dual high-efficiency tube-axial fans and a compressed tube for thermal energy (heat) exchange between supply and exhaust air streams to ventilate a wide range of spaces from single rooms and open concept spaces to small houses throughout the year. Additionally, air filtration can be achieved by using a G2 (MERV4) filter which ships with the unit or optional G4 (MERV7) filter. An optional Inline Filter Box that offers HEPA filtration can also be used with CLIMATE. The Inline Filter Box does not restrict the air flow in the product.
Stale air is “exhaled” through a compressed tube whereas fresh air is “inhaled” through the shell side of the air-to-air exchanger. Importantly, thermal energy (heat) exchange between the fresh and stale air streams occurs via the walls of the compressed tube.
...
Safe
The product operates by utilizing internal operating voltages that are safe.
Reliable
Standard parts are ingeniously utilized to guarantee reliability and mitigate obsolescence.
Robust
The product uses a simple configuration that translates to a robust build.
MULTI-SPEED CONTROL
Previously, speed control on "BASIC" variants could only be achieved through external power sources.
We now offer internal multi-speed control on all CLIMATE units.
Normal Mode
Default mode of the unit once it has been powered
Boost Mode
Triggers a higher flow rate than the Normal mode
Normal | Configuration
You can precisely tune the speed of a fan by adjusting the default controller setting.
Boost | Control
Use the inbuilt boost buttons OR achieve external control via switches, smart plugs & humidity controllers.
The unit features two variants.
Single Speed
This variant runs at a fixed speed at the output voltage of the AC-to-DC adapter or DC power source.
Multi Speed
This variant features two speeds.
Normal: This is the default mode of the unit once it has been powered, and can be adjusted if needed.
Boost: Upon activation, the unit operates in this mode at a higher flow rate than the Normal mode as further expatiated in the data sheet.
EASY INSTALLATION
1
Mount the product on the wall or ceiling. You may also place it on a table or floor.
2
Drill 2x 3” holes or use a fabric casement seal that has 2 zipper orifices to avoid drilling.
3
Insert the 2x pre-assembled ducts into the holes and supply power to the product.
Please read the User Manual and Installation Guide for comprehensive information on how to install and control the product.
Do you need help with product selection?
CLIMATE
3-IN-1
- 2-Port
- Spot Location
- Best for Spot Ventilation
MINI
3-IN-1
- 4-Port
- Remote & Spot Location
- Best for Remote Ventilation
- If you need a heat recovery unit for spot or remote ventilation, choose MINI.
- If you need to spot ventilate a space with heat recovery (e.g., direct window installation), choose CLIMATE.
- Please see more details on our product comparison page.
CLIMATE
3-IN-1
- Robust Ventilation
- Double Pipe Heat Exchanger
- 50 m3/h
MINI
3-IN-1
- Trickle Ventilation
- Shell & Tube Heat Exchanger
- 35 m3/h
- If you need a robust heat recovery ventilator for a very small space, choose MINI.
- If you need to ventilate a space with supplementary heat recovery, choose CLIMATE.
- Please see more details on our product comparison page.
Please reach out to us if you need guidance on the appropriate product(s) for your application…
We offer diverse products for a wide range of customers and applications…
REVIEWS
Over the past few years, our customers have sent us glowing testimonials of which a few are published here.
We set up this review portal so that you can directly share your experience with our products.
Reviews are subject to our terms and conditions.
Using … for overlander. I have been pleased with the size and capability of the CLIMATE in my SUV… The size and sturdiness allows me to install it as needed, so it’s not a permanent setup. It move a lot of air for such a small space, but that is beneficial when fighting against wet clothes and any latent humidity…
2025-06-06
Verified
I have installed the Climate HRV last fall in our 200 square feet tiny house. The house has a second floor on a mezzanine. We have had good success with the unit, the unit is on the second floor, taking air from the washroom below and feeding the fresh air upstairs…. The installation of the machine is very easy, we were able to connect it to two 3 inch pipe that go outside through the wall. I appreciate the simplicity, the low price and how dependable it is…
2024-01-24
Verified
Great Unit Easy Install. Using it in a basement living space and noticed the difference immediately.
2025-08-18
Verified
*The images on this page are only representative and may not depict the actual item that will be received by the customer.
Notes
The images on this page are only representative and may not depict the actual item that will be received by the customer.
1. All reported specification values are nominal. 2. The sensible effectiveness is at a maximum flow rate of 25 CFM when the product is used in conjunction with an Inline Filter Box that is installed indoors. 3. The sound and power measurements represent the minimum controllable level of an operating unit and exclude legacy variants that do not have dedicated fan controllers. The nominal power that is consumed by a unit can reach or exceed 5 W depending on the specific combination of supply and exhaust fans. The sound measurements were taken at ~3 m from the units. 4. The recommended indoor conditions for the operation of the units are as per the winter and summer comfort zones that are prescribed in ANSI/ASHRAE Standard 55 – 2010.
The recommended floor area is based on the 2021 International Residential Code and ASHRAE Standard 62.2 – 2010 at the rated capacity of the product and an assumed ceiling height of 8 ft.
In terms of ASHRAE Standard 52.2, G2 is approximately rated to MERV4 whereas G4 corresponds to the MERV7 filtration level. In accordance with EN 779 and ISO 16890, G4 filters can capture 60%-85% of particles that are within 0.3 to 10 microns whereas G2 filters can trap the same size of particles at an efficiency of 30%-50%. On the other hand, our HEPA filters, which are based on EN 1822, can trap at least 99.5% of most penetrating particle sizes that are below 2.5 microns. * *
